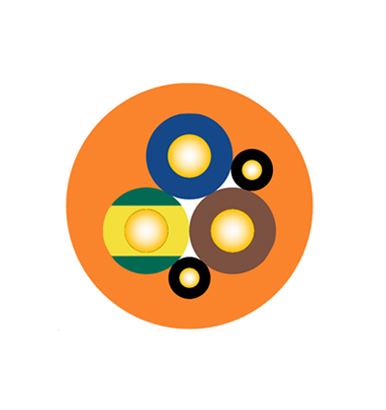

Material Properties That Make Drag Chain Cables Durable

Introduction

Drag chain cables, also known as energy chains or cable carriers, are essential components in industrial automation, robotics, and machinery where continuous movement of cables and hoses is required. These cables must withstand repeated bending, torsion, abrasion, and exposure to harsh environments while maintaining electrical and mechanical integrity. The durability of drag chain cables depends significantly on the materials used in their construction.

This paper explores the key material properties that contribute to the durability of drag chain cables, including mechanical strength, flexibility, abrasion resistance, thermal stability, chemical resistance, and electrical performance. Understanding these properties helps in selecting the right cables for demanding applications.

---

1. Mechanical Strength and Tensile Properties

One of the most critical properties of drag chain cables is their mechanical strength. Since these cables are subjected to constant movement, they must resist stretching, deformation, and breakage.

1.1 High-Strength Conductors

- Copper is the most common conductor material due to its excellent electrical conductivity and flexibility. However, pure copper can be prone to work hardening and fatigue under repeated bending.

- To enhance durability, conductors are often made from tinned copper or high-flex copper alloys, which improve tensile strength and resistance to fatigue.

- Some applications use copper-clad aluminum (CCA) for lighter weight, though it has lower conductivity and tensile strength compared to pure copper.

1.2 Reinforcement Materials

- Aramid fibers (e.g., Kevlar®) are often used as tensile reinforcement to prevent elongation and breakage. These fibers provide high strength-to-weight ratios and resistance to stretching.

- Steel or fiberglass braiding can also be incorporated for additional mechanical support, especially in heavy-duty applications.

---

2. Flexibility and Bend Resistance

Drag chain cables must endure millions of bending cycles without failure. The materials must balance flexibility with structural integrity.

2.1 Conductor Stranding

- Fine-stranded conductors (e.g., Class 5 or 6 per IEC 60228) allow for better flexibility compared to solid or coarse-stranded conductors.

- Bunched or rope-lay stranding further enhances flexibility by reducing internal stresses during bending.

2.2 Insulation and Sheath Materials

- Thermoplastic elastomers (TPE) and polyurethane (PUR) are commonly used for insulation due to their excellent flexibility and fatigue resistance.

- PVC (Polyvinyl Chloride) is cost-effective but less flexible over long-term use, making it suitable for less demanding applications.

- Silicone rubber offers superior flexibility and high-temperature resistance but is less abrasion-resistant than PUR or TPE.

---

3. Abrasion Resistance

Drag chain cables move within confined spaces, often rubbing against other cables or the chain itself. Abrasion-resistant materials prevent premature wear.

3.1 Outer Sheath Materials

- Polyurethane (PUR) is widely preferred for its excellent abrasion resistance, flexibility, and resistance to oils and chemicals.

- PVC with added plasticizers can provide moderate abrasion resistance but may degrade over time.

- TPE-based compounds offer a balance between flexibility and abrasion resistance.

3.2 Special Coatings and Textures

- Some cables feature corrugated or ribbed sheaths to reduce surface contact and friction.

- Self-lubricating materials or low-friction additives (e.g., PTFE coatings) can minimize wear.

---

4. Thermal Stability

Industrial environments often expose cables to extreme temperatures, requiring materials that maintain performance under heat and cold.

4.1 High-Temperature Resistance

- Cross-linked polyethylene (XLPE) and ETFE (Ethylene Tetrafluoroethylene) can withstand temperatures up to 150°C.

- Silicone rubber remains flexible even at very low temperatures (-60°C) and high temperatures (200°C).

- FEP (Fluorinated Ethylene Propylene) offers excellent thermal stability and chemical resistance.

4.2 Heat Dissipation

- Metal shielding or braiding helps dissipate heat, preventing insulation degradation.

- Thermally conductive fillers in insulation materials can improve heat resistance.

---

5. Chemical and Environmental Resistance

Industrial settings may expose cables to oils, solvents, acids, and UV radiation. Durable materials must resist degradation.

5.1 Oil and Chemical Resistance

- PUR and TPE are highly resistant to oils, greases, and hydraulic fluids.

- FEP and PTFE provide superior chemical resistance, making them ideal for harsh environments.

5.2 UV and Weather Resistance

- UV-stabilized PVC or PUR prevents degradation from sunlight exposure.

- Halogen-free materials reduce toxic fume emissions in case of fire.

---

6. Electrical Performance and Shielding

Signal integrity is crucial in automation and robotics. Proper shielding and insulation prevent interference.

6.1 Insulation Materials

- XLPE and ETFE offer excellent dielectric strength.

- Foamed insulation reduces weight while maintaining electrical properties.

6.2 Shielding Effectiveness

- Tinned copper braiding provides EMI/RFI shielding.

- Foil shielding is lightweight but less durable than braided shielding.

---

7. Conclusion

The durability of drag chain cables depends on a combination of material properties, including mechanical strength, flexibility, abrasion resistance, thermal stability, chemical resistance, and electrical performance. Selecting the right materials ensures long service life, reduced downtime, and reliable operation in demanding industrial environments.

By understanding these properties, engineers and designers can optimize cable selection for specific applications, ensuring efficiency and longevity in automated systems.
